GitLab CI/CD with Customized Tooling Docker Image

End-to-End Automation for Kubernetes Deployments Using Custom Pipelines

Overview

This project is a simulated case study inspired by real-world work I delivered in a client engagement. All proprietary assets have been omitted to preserve client confidentiality, but the architecture and engineering reflect actual problem-solving and implementation strategies.

The project demonstrates a production-grade GitLab CI/CD pipeline designed to automate the build, containerization, and deployment of Java-based applications into a Kubernetes environment. The pipeline uses a custom Docker image preloaded with key DevOps tools to ensure fast, consistent, and isolated builds.

Pipeline Architecture

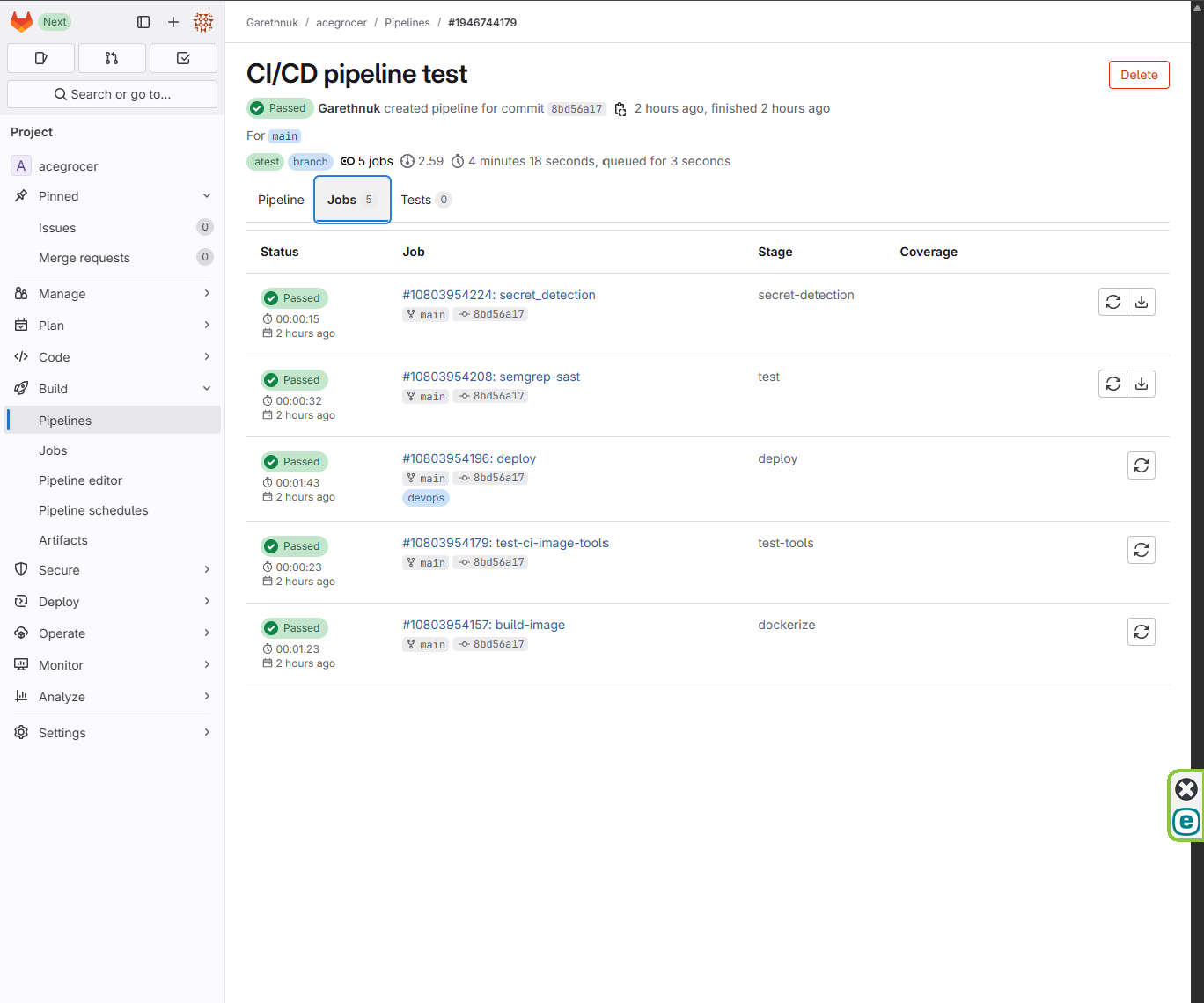

Screenshots

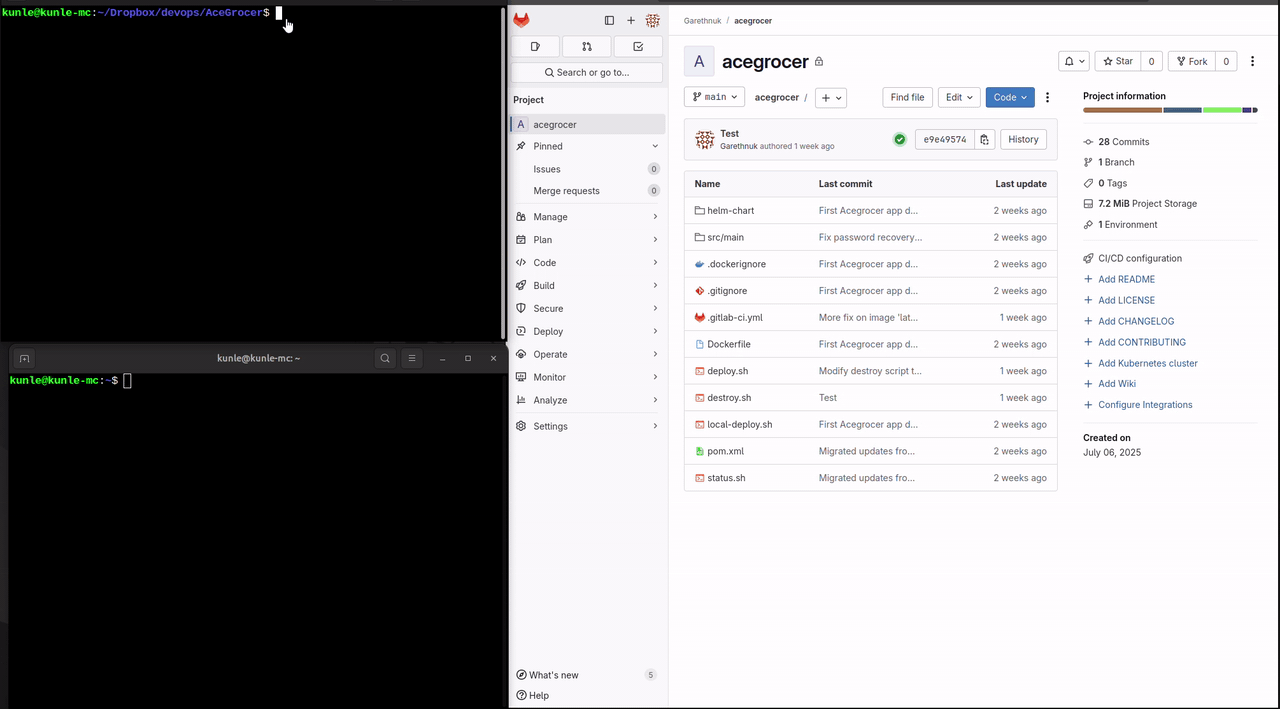

UI Walkthrough (GIF Preview)

Workflow Description

Code is pushed to a private GitLab repository triggering the pipeline.
A custom GitLab Runner uses a prebuilt Docker image containing:
- kubectl - For cluster interaction
- Helm - For templated deployments
- bash and core Linux CLI tools - For scripting automation
The pipeline stages are organized into:
- Build - Maven builds the Java Spring Boot service
- Package - Docker builds and tags the image
- Publish - Image is pushed to GitLab's container registry

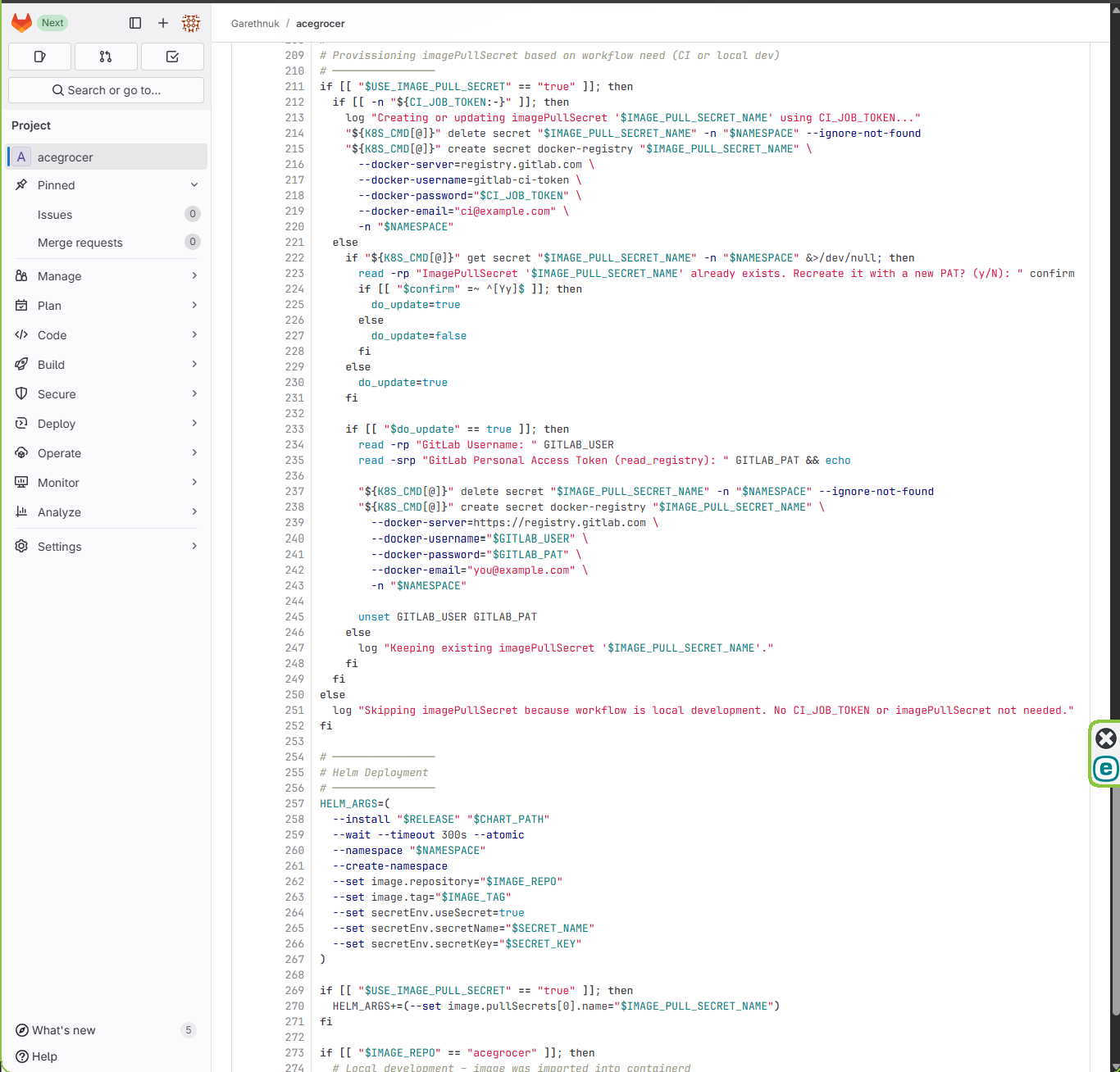

- Deploy - Bash scripts and Helm charts apply updates to Kubernetes. A GitLab Project Runner deployed in the k8s cluster executes this stage
- Test - Static Application Security Testing (SAST) is used to discover vulnerabilities in the source code, or identify security issues during development when they’re easiest and most cost-effective to fix
- Secret Detection - Secret Detection customization to scan deployed containers for sensitive credential leaks
Helm values are templated per environment (dev/staging/prod).
Each deployment includes instrumentation hooks for observability.

Features Implemented

Private container registry integration using GitLab's built-in registry
Custom Docker image with pre-installed tools to speed up execution
Pipeline YAML includes linting, image tagging, and Helm chart validation
Declarative deployment through version-controlled Helm charts
Environment variables and secrets injected securely through GitLab CI/CD settings

Custom Docker Image

The GitLab Runner executes jobs inside a custom Docker image hosted in a private registry. The image includes:

Helm
kubectl
Maven
Git, Bash, and essential tools

This reduces setup time during builds and ensures consistent behavior across stages.

Example Snippets

.gitlab-ci.yml

image: registry.gitlab.com/kunle/tools:ci-helm-kubectl

stages:
  - build
  - deploy

build-app:
  stage: build
  script:
    - mvn clean package
    - docker build -t $CI_REGISTRY_IMAGE:$CI_COMMIT_SHORT_SHA .
    - docker push $CI_REGISTRY_IMAGE:$CI_COMMIT_SHORT_SHA

deploy-to-k8s:
  stage: deploy
  script:
    - helm upgrade --install app ./helm-chart --namespace dev --set image.tag=$CI_COMMIT_SHORT_SHA

Use Cases

Fully automated delivery pipeline for containerized Spring Boot apps
Repeatable Helm-based deployments across namespaces/environments
Fast iterative testing for local-to-cluster development flow

Challenges Solved

Time lost to manual deployments and inconsistent dev environments
Need for isolated, reproducible CI/CD runners across projects
Environment drift between staging and production clusters

Demo or Walkthrough

This project is hosted in a private GitLab repo. Interested reviewers can contact me for a walkthrough of the CI/CD pipeline YAML, runner image Dockerfile, and Helm chart structure.

Request access by reaching out via email.
